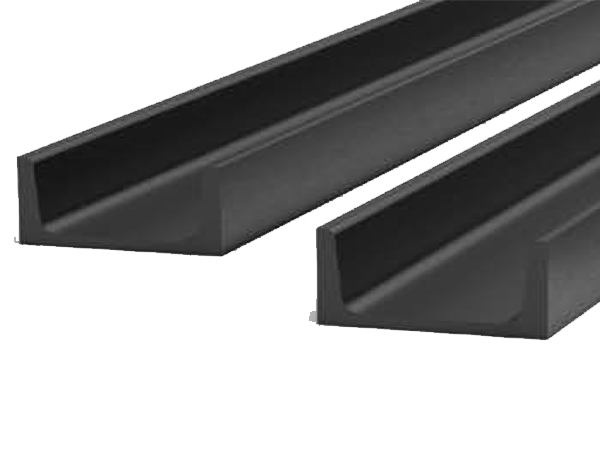

U-Profiles (UPN)

Alloyed and unalloyed hot rolled UPN profiles are used for different purposes in many sectors such as energy transmission lines, general structural steels, machinery and manufacturing sectors.

Size Ebat	Depth (h) Yükseklik	Width (b) Genişlik	Thickness Web (s) Gövde Kalınlığı	Thickness Flange (t) Flanş Kalınlığı	Weight Ağırlık
mm	mm	mm	mm	mm	Kg/m
65	65	42	5.5	7.5	7.09
80	80	45	6.0	8.0	8.64
100	100	50	6.0	8.5	10.60
120	120	55	7.0	9.0	13.40
140	140	60	7.0	10.0	16.00
160	160	65	7.5	10.5	18.80
